High Accuracy Fiber Optic Gyroscope with ±500°/s Angular Rate ≤2°/h Bias Stability and ≤0.04°/√h Random Walk Coefficient for UAV Navigation

Name: High Accuracy Fiber Optic Gyroscope with ±500°/s Angular Rate ≤2°/h Bias Stability and ≤0.04°/√h Random Walk Coefficient for UAV Navigation
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-24
Price: 700 USD
Availability: InStock

Nome da marca:	Firepower
Número do modelo:	MFOG-24
MOQ:	1
preço:	700$
Condições de pagamento:	L/C,D/A,D/P,T/T,Western Union
Capacidade de abastecimento:	500/mês

Informações pormenorizadas

Descrição do produto

Informações pormenorizadas

Lugar de origem:

China

Taxa Angular Máxima:

±500°/s

Estabilidade do viés:

≤ 2°/h

Repetibilidade de viés zero:

≤ 2°/h

Coeficiente de caminhada aleatória:

≤0,04°/√h

Tensão de alimentação:

+5V

largura de banda:

≥300Hz

Detalhes da embalagem:

CAIXA+Esponja

Habilidade da fonte:

500/mês

Destacar:

±500°/s Angular Rate Fiber Optic Gyroscope

≤2°/h Bias Stability FOG Gyro

≤0.04°/√h Random Walk Coefficient Fiber Optic Gyro

Descrição do produto

High Accuracy Fiber Optic Gyroscope Manufacturer for UAV Navigation

Product Overview

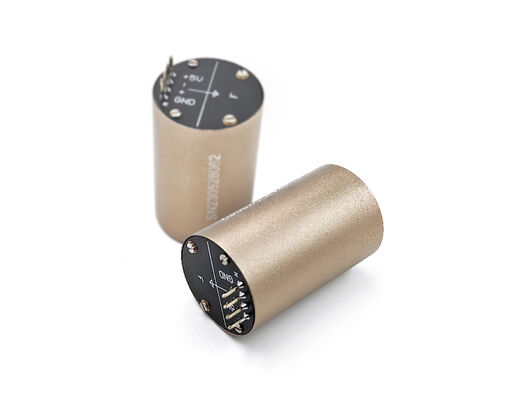

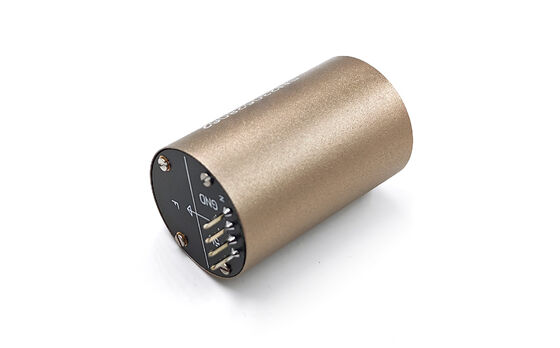

The MFOG-24 delivers accurate angular rate measurement through integration of optics, mechanics, and electronics. Based on the Sagnac effect, it offers high precision, fast response, and no moving parts, ensuring long-term durability and low maintenance. With φ 24×39mm size and ≤30g weight, it is suitable for UAVs, drones, autonomous vehicles, and industrial robotics.

Key Features

Angular rate range: ±500°/s
Zero-bias repeatability: ≤1.5°/h
Angular random walk: ≤0.03°/h^1/2
Operating temperature: -40°C ~ +65°C, storage: -55°C ~ +85°C
Vibration resistant: 20g
Low power consumption: ≤1.5W
Direct replacement for Fizoptika VG191AD

Application Scenarios

UAV & Drone Stabilization: Smooth flight control and accurate navigation.
Autonomous Vehicles & Robotics: Reliable orientation measurement in complex terrains.
Industrial Automation: High-precision motion control for machinery and robotic systems.
Aerospace & Satellite Navigation: Compact, high-precision gyroscope for aerospace applications.

Technical Specifications

MFOG-24 vs MFOG-24-AN vs Fizoptika VG191AD – Complete Parameter Comparison

Parameter	Unit	MFOG-24	MFOG-24-AN	Fizoptika VG191AD
Measurement Range	°/s	±500	±300	300
Scale Factor	LSB/°/s or mV/°/s	3600 LSB/°/s	7 mV/°/s	0.02 % RMS
Scale Factor Nonlinearity	ppm	300	≤1000	N/A
Zero-Bias Stability (10s, 1σ)	°/h	≤1.5	≤2	1 (Allan variance min)
Zero-Bias Repeatability (1σ)	°/h	≤1.5	≤2	N/A
Angular Random Walk (ARW)	°/√h	≤0.03	≤0.04	0.012
Bandwidth (3dB)	Hz / kHz	≥300 Hz	≥450 Hz	0.6 kHz
Magnetic Response	°/h/Gauss	N/A	N/A	3 / 0.05 typical
Initialization	s	Fast	Fast	0.03
Power Supply	V	5 ±0.15	5 ±0.15	+5V
Power Consumption	W	≤1.5	≤0.7	0.5
Data Rate	kHz	N/A	N/A	8 (24-bit)
Baud Rate	kBd	N/A	N/A	921.6, RS422 asynchronous
Operating Temperature	°C	-40~+65	-40~+65	-40…+70
Endurance / Storage Temperature	°C	-55~+85	-55~+85	-55…+85 (>2h, non-operating)
Random Vibration	g	20, 20-2000 Hz	20 g	18 g, 20-2000 Hz RMS
Shocks	g	N/A	N/A	750 g, 1 ms half-sine
Dimensions	mm	φ24 × 39	φ24 × 39	φ24 × 48
Weight	g	≤30	≤30	30 / 45
Housing	--	Structural + Optical + Electronics	Structural + Optical + Electronics	Al alloy / μ-metal, IP67
MTBF / Lifetime	yr	N/A	N/A	15 (humidity conditions applied)
Moving Parts	--	None	None	None
Start-up	--	Fast	Fast	0.03 s
Applications	--	UAV, Robotics, Attitude Control, Precision Measurement	UAV, Robotics, Attitude Control, Precision Measurement	UAV, Robotics, Attitude Control, Precision Measurement
Replacement	--	Fizoptika VG191AD compatible	Fizoptika VG191AD compatible	N/A

Applications

Navigation for drones, autonomous vehicles, robotics, and industrial motion control. Serves as a drop-in replacement for Fizoptika VG191AD.

Electrical Interface

Number	Definition
1	5V
2	Analog output Low
3	Analog Output High
4	GND
