High Stability Open-Loop Fiber Optic Gyroscope FOG IMU with ±500°/s Angular Rate ≤2°/h Bias Stability φ24X39mm Compact Size

Name: High Stability Open-Loop Fiber Optic Gyroscope FOG IMU with ±500°/s Angular Rate ≤2°/h Bias Stability φ24X39mm Compact Size
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-24
Price: 700 USD
Availability: InStock

Nome da marca:	Firepower
Número do modelo:	MFOG-24
MOQ:	1
preço:	700$
Condições de pagamento:	L/C,D/A,D/P,T/T,Western Union
Capacidade de abastecimento:	500/mês

Informações pormenorizadas

Descrição do produto

Informações pormenorizadas

Lugar de origem:

China

Taxa Angular Máxima:

±500°/s

Estabilidade do viés:

≤ 2°/h

Coeficiente de caminhada aleatória:

≤0,04°/√h

Tensão de alimentação:

+5V

largura de banda:

≥300Hz

Dimensão:

φ24X39 mm

Detalhes da embalagem:

CAIXA+Esponja

Habilidade da fonte:

500/mês

Destacar:

±500°/s Angular Rate Fiber Optic Gyroscope

≤2°/h Bias Stability FOG Inertial Measurement Unit

φ24X39mm Compact Size MFOG-24

Descrição do produto

High Stability Open‑Loop Fiber Optic Gyroscope FOG Inertial Measurement Unit IMU Integrated

Product Overview

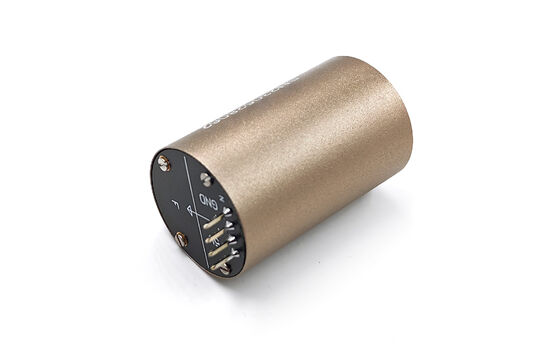

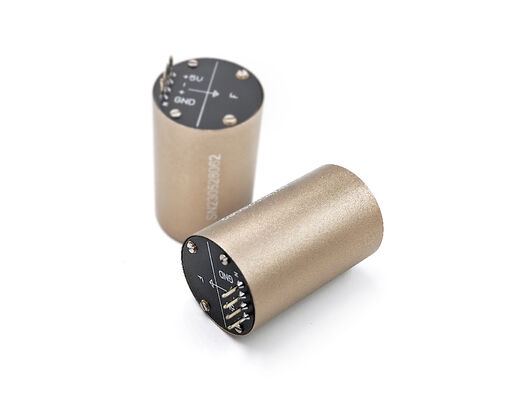

The MFOG-24 gyroscope integrates advanced micro-nano fiber technology with optical and electronic processing for highly accurate angular rate measurement. Its φ 24*39mm compact size and lightweight ≤30g make it easy to integrate into UAVs, drones, autonomous vehicles, industrial robots, and satellite systems. Designed with no moving parts, it ensures minimal wear, fast response, and high reliability in extreme environments.

Key Features

Angular rate range: ±500°/s
Zero-bias stability: ≤1.5°/h (10s, 1σ)
Angular random walk: ≤0.03°/h1/2
Scale factor nonlinearity: 300 ppm
Operating temperature: -40°C to +65°C
Vibration tolerance: 20g
Low power consumption: ≤1.5W
Replacement for Fizoptika VG191AD

Application Scenarios

UAV & Drone Stabilization: Maintains stable flight and precise positioning even in turbulent conditions.
Autonomous Vehicles & Robotics: High-accuracy orientation sensing for robust navigation.
Industrial Automation: Integrates into automated systems for precise movement and positioning.
Aerospace & Satellite Navigation: Compact, lightweight, and reliable for spacecraft INS systems.

Technical Specifications

MFOG-24 vs MFOG-24-AN vs Fizoptika VG191AD – Complete Parameter Comparison

Parameter	Unit	MFOG-24	MFOG-24-AN	Fizoptika VG191AD
Measurement Range	°/s	±500	±300	300
Scale Factor	LSB/°/s or mV/°/s	3600 LSB/°/s	7 mV/°/s	0.02 % RMS
Scale Factor Nonlinearity	ppm	300	≤1000	N/A
Zero-Bias Stability (10s, 1σ)	°/h	≤1.5	≤2	1 (Allan variance min)
Zero-Bias Repeatability (1σ)	°/h	≤1.5	≤2	N/A
Angular Random Walk (ARW)	°/√h	≤0.03	≤0.04	0.012
Bandwidth (3dB)	Hz / kHz	≥300 Hz	≥450 Hz	0.6 kHz
Magnetic Response	°/h/Gauss	N/A	N/A	3 / 0.05 typical
Initialization	s	Fast	Fast	0.03
Power Supply	V	5 ±0.15	5 ±0.15	+5V
Power Consumption	W	≤1.5	≤0.7	0.5
Data Rate	kHz	N/A	N/A	8 (24-bit)
Baud Rate	kBd	N/A	N/A	921.6, RS422 asynchronous
Operating Temperature	°C	-40~+65	-40~+65	-40…+70
Endurance / Storage Temperature	°C	-55~+85	-55~+85	-55…+85 (>2h, non-operating)
Random Vibration	g	20, 20-2000 Hz	20 g	18 g, 20-2000 Hz RMS
Shocks	g	N/A	N/A	750 g, 1 ms half-sine
Dimensions	mm	φ24 * 39	φ24 * 39	φ24 * 48
Weight	g	≤30	≤30	30 / 45
Housing	--	Structural + Optical + Electronics	Structural + Optical + Electronics	Al alloy / μ-metal, IP67
MTBF / Lifetime	yr	N/A	N/A	15 (humidity conditions applied)
Moving Parts	--	None	None	None
Start-up	--	Fast	Fast	0.03 s
Applications	--	UAV, Robotics, Attitude Control, Precision Measurement	UAV, Robotics, Attitude Control, Precision Measurement	UAV, Robotics, Attitude Control, Precision Measurement
Replacement	--	Fizoptika VG191AD compatible	Fizoptika VG191AD compatible	N/A

Applications

Navigation for drones, autonomous vehicles, robotics, and industrial motion control. Serves as a drop-in replacement for Fizoptika VG191AD.

Electrical Interface

Number	Definition
1	5V
2	Analog output Low
3	Analog Output High
4	GND
