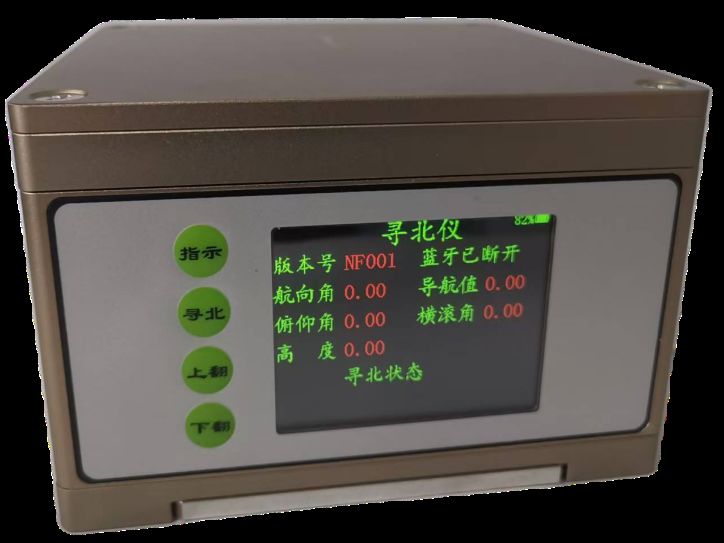

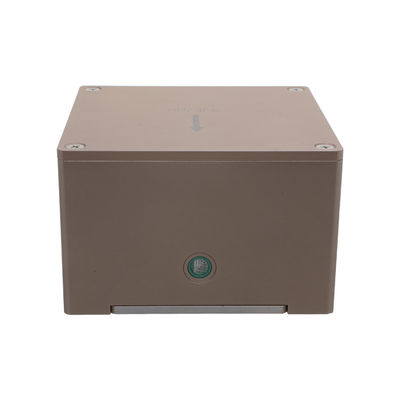

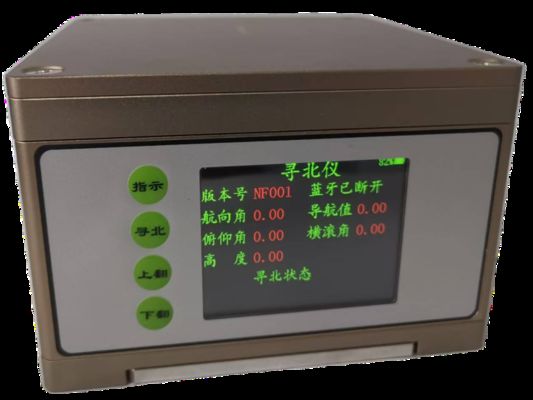

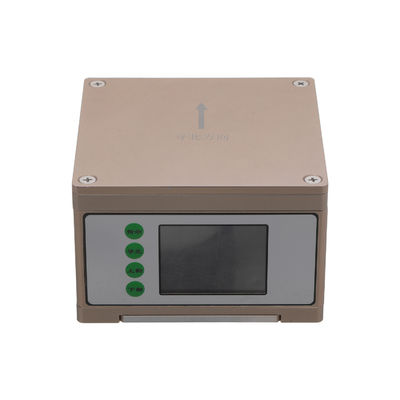

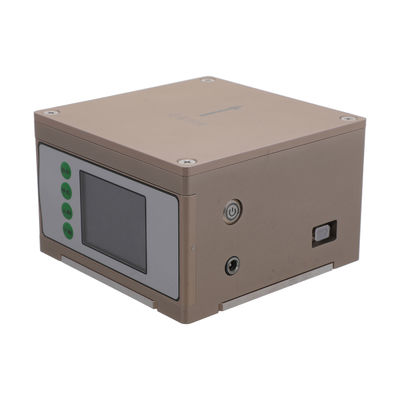

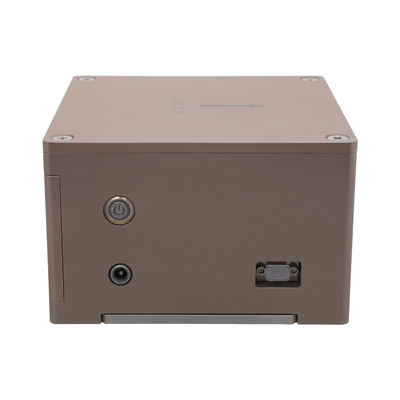

Digital Compass North Finder with Screen Display for Mapping

Nome da marca:	1
Número do modelo:	NF103A
MOQ:	1
preço:	2000$
Condições de pagamento:	L/C,D/P,T/T,Western Union
Capacidade de abastecimento:	500/month

Informações pormenorizadas

Descrição do produto

Informações pormenorizadas

Place of Origin:

China

North seeking accuracy:

±0.5°

Pitch accuracy:

±0.1°

Roll angle accuracy:

±0.1°

Tilt adaptability:

±15°

Overall dimensions:

135*135*85mm

Weight:

≤1500g

Heading angle tracking measurement accuracy:

0.5°(5min)

Packaging Details:

Sponge + Carton

Supply Ability:

500/month

Destacar:

digital compass with screen display

gyro north finder for mapping

digital compass with north finder

Descrição do produto

Digital Compass North Finder with Screen Display for Mapping

Key Specifications

Attribute	Value
North seeking accuracy	±0.5°
Pitch accuracy	±0.1°
Roll angle accuracy	±0.1°
Tilt adaptability	±15°
Overall dimensions	135×135×85mm
Weight	≤1500g
Heading angle tracking measurement accuracy	0.5° (5min)

Product Overview

This commercial-grade digital compass north finder features a screen display for mapping applications. Designed for professional use, it combines rich features with portability, including a built-in explosion-proof battery. Industrial grade models offer compact size, lightweight construction, and low power consumption.

Typical Applications

Radar, antenna, and vehicle initial alignment and direction control
Providing accurate azimuth reference for tunnel construction, mining, and geodetic survey projects
Field survey, outdoor exploration, and communication base station antenna orientation

Technical Specifications

Project	Unit	Commercial Grade NF-103A	Commercial Grade NF-103B	Industrial Grade NF-102A	Industrial Grade NF-102B
Communication mode		Screen display/mobile phone APP/upper computer software RS422/RS485	RS422/RS232
Connector		J30JM-9ZKP	J30JM-9ZKP	J30JM-15ZKP	J30JM-15ZKP
Power consumption (with laser indication)	W	≤3	≤3
Power consumption (without laser indication)	W	≤1.2	≤1.2	≤1	≤1
Power supply	V	Standby for 18h with explosion-proof battery	DC9V~26V	DC9V~26V
Operating temperature	℃	0~+40	0~+40	-40~+60	-40~+60
North seeking time	min	≤3
North seeking accuracy	°	±0.5	±1	±0.5	±1
Pitch accuracy	°	±0.1	±0.5	±0.1	±0.5
Roll angle accuracy	°	±0.1	±0.5	±0.1	±0.5
Tilt adaptability	°	±15
Altitude measurement	m	include	include
Overall dimensions	mm	135×135×85	60×60×60
Installation dimensions	mm	119×119	46×53
Weight	g	≤1500	≤1500	≤400	≤400
